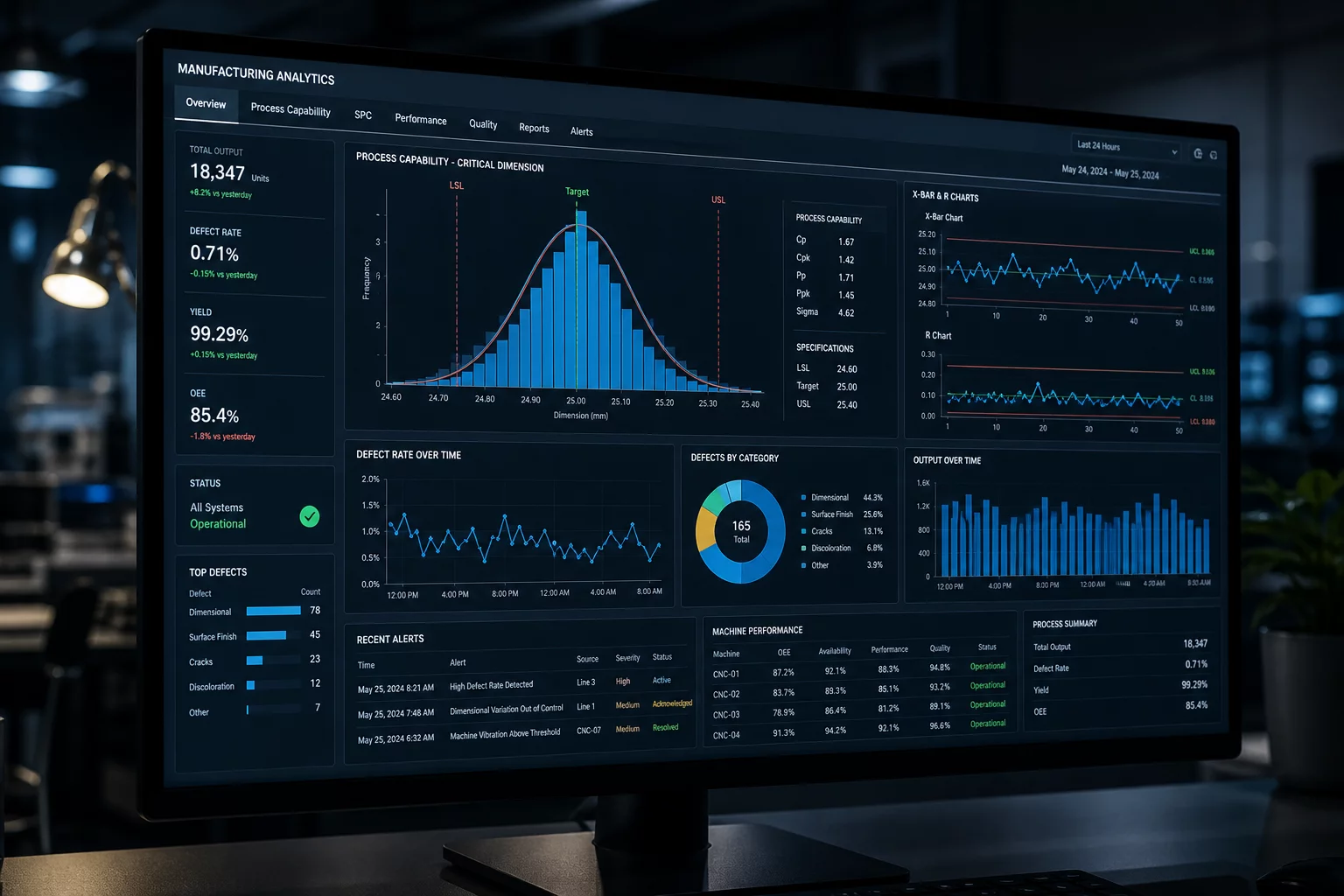

Batch Pattern Analysis

Evaluation Scope and Metrological Standards

Batch pattern analysis examines how dimensional deviations manifest across an entire production cycle rather than isolating individual component metrics. In serial 3D printing, small-batch runs often display non-random trends that emerge from toolpath kinematics, ambient chamber temperature gradients, and localized bed adhesion dynamics. When fifteen parts are printed simultaneously on a single build plate, their physical variance forms distinct clusters that reveal systemic hardware behavior.

Metrologists track these distributions by mapping coordinate-specific offsets against nominal CAD references. Tracking the standard deviation and dispersion profile across multiple consecutive runs helps teams distinguish harmless Gaussian noise from severe mechanical backlash or heating zone degradation. Establishing a verified baseline enables rapid containment of out-of-tolerance units before downstream mechanical assemblies experience interference or structural failure.

Process Variation Breakdown

Identifying recurring geometric shifts requires separating spatial platter variance from temporal cycle drift. Spatial patterns typically correlate with bed leveling mesh interpolations and localized airflow turbulence. Cycle-to-cycle drift, on the other hand, usually highlights nozzle bore wear, stepper motor thermals, or resin vat depletion. Rigorous metrology isolates each factor through multi-point measurement arrays.

• Spatial correlation matrix evaluating outer edge cooling vs center core retention.
• Run-sequence verification recording sequential part dimensional drift over 24-hour manufacturing blocks.
• Statistical capability analysis calculating capability metrics against ISO 2768-m tolerance boundaries.
