Surface Consistency Evaluation

Evaluation Scope and Metrological Standards

Surface consistency evaluation establishes whether repeated production cycles replicate the intended tactile and visual exterior across every printed unit. In additive manufacturing, external finish depends on micro-scale extrusion stability, ambient temperature stability, and toolpath acceleration. A variation in surface roughness often reveals mechanical instability before gross dimensional errors manifest in caliper inspections.

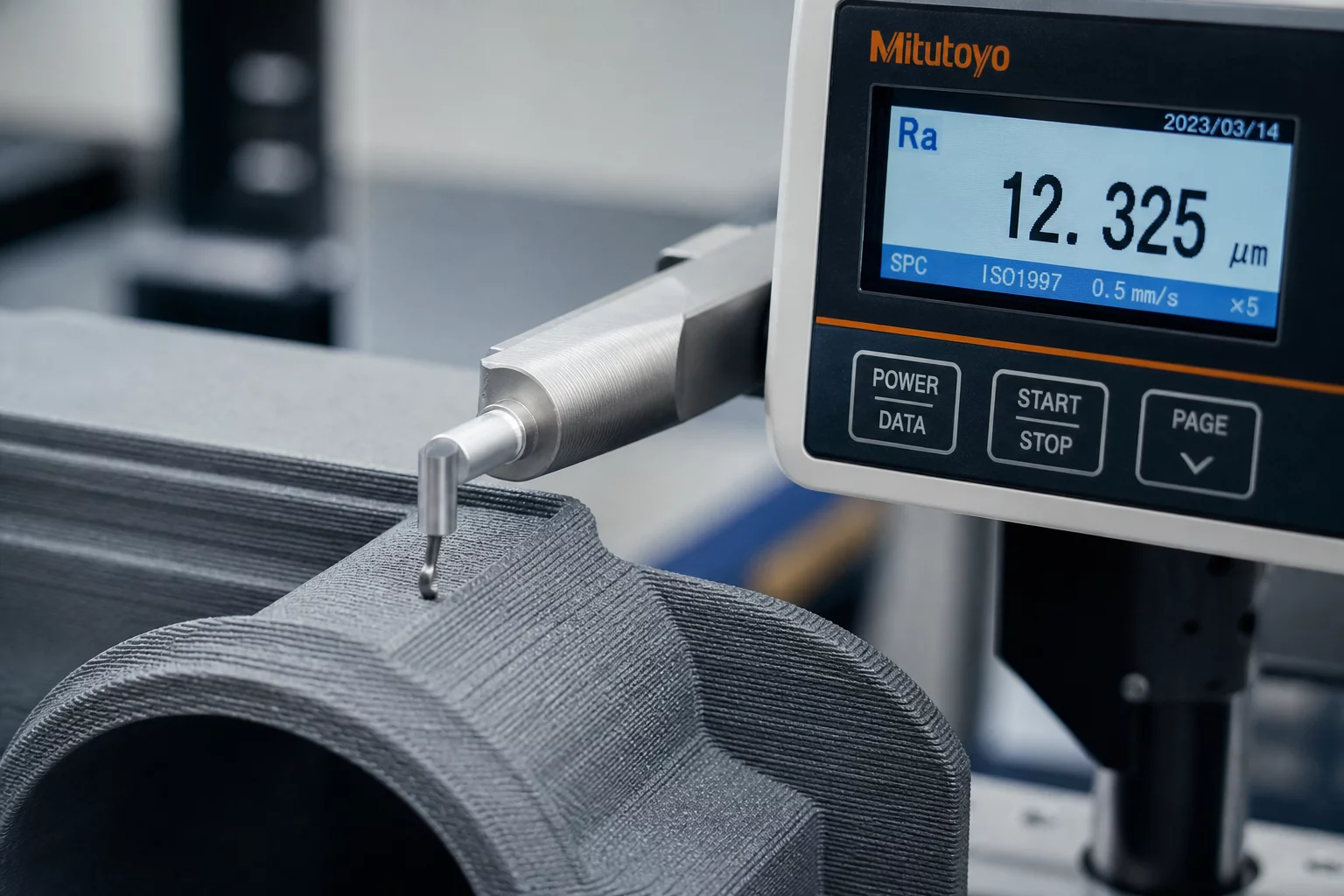

Evaluating surface texture across serialized builds requires standardized measurement lines on both vertical walls and sloped faces. Contact stylus profilometers track arithmetic mean roughness (Ra) and average maximum height of the profile (Rz) along consistent sampling lengths. For rapid non-destructive screening, chromatic confocal optical sensors offer continuous topography maps without marring delicate polymer skins.

Process Variation Breakdown

Variance in outer skin finish usually traces back to three physical causes: filament diameter irregularities, kinematic resonance during rapid direction changes, or localized thermal gradients across the build plate. Inspecting surface consistency at multiple plate locations isolates whether the root cause originates from machine mechanics or environmental draft exposure.

• Surface roughness limit: Ra target maintained below 6.3 micrometers across all exterior visible zones.
• Batch-to-batch variation limit: Delta Ra strictly under 0.8 micrometers between distinct build cycles.
• Kinematic ringing check: Ghosting amplitude below 15 micrometers at 150 mm/s perimeter travel speeds.
