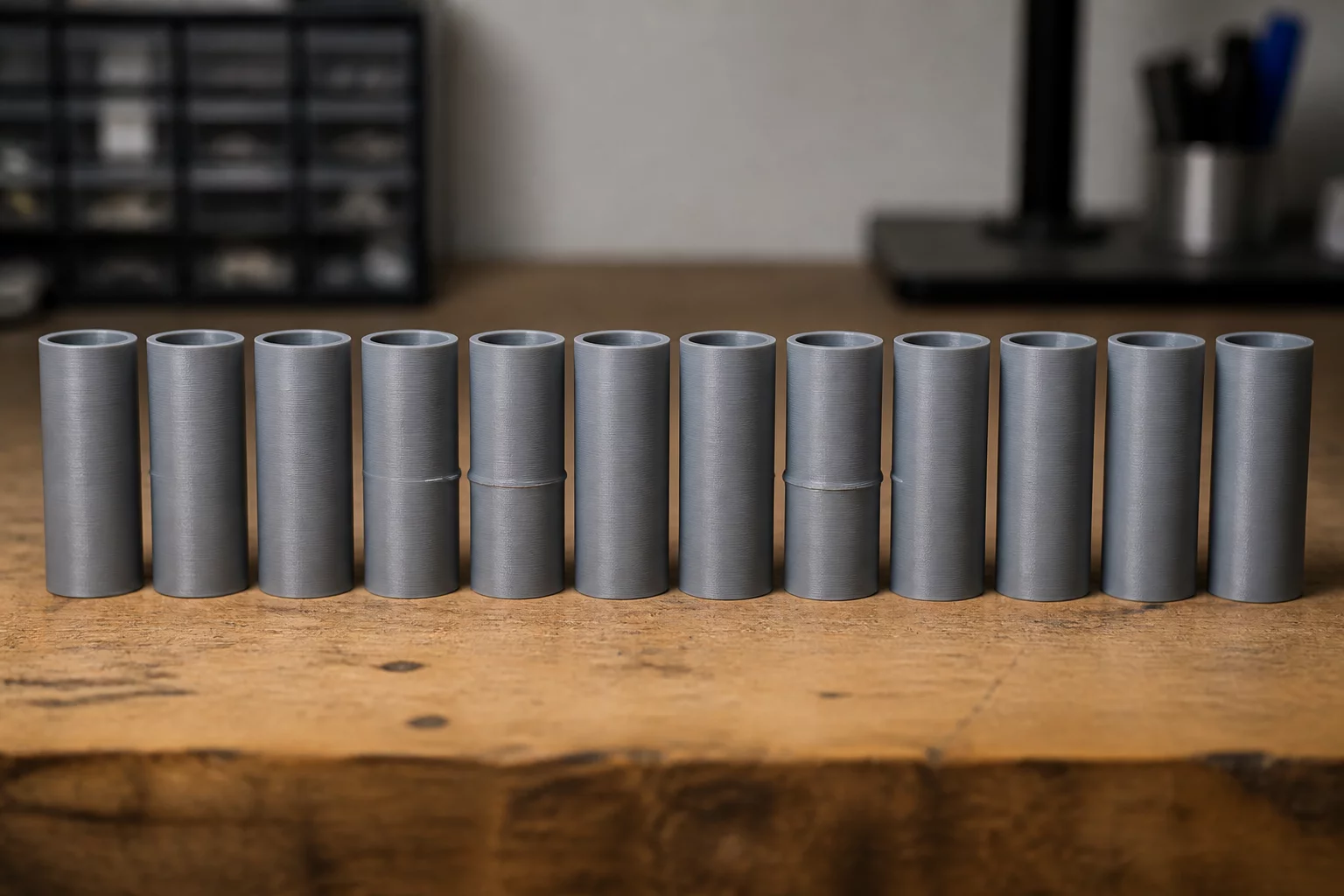

A Defect That Returned Every Fourth Part

Evaluation Scope and Metrological Standards

In multi-part serial additive manufacturing, sporadic anomalies are frustrating, but predictable periodic defects reveal mechanical synchronization failures. During a recent validation run of 48 identical nylon enclosures distributed across four quadrants on an industrial print bed, an unmistakable pattern emerged upon micrometer inspection: every fourth component suffered an outward step-flange variance of +0.14mm on the secondary axis. All intervening pieces passed within the ±0.03mm tolerance envelope without exception.

Statistical quality control quickly rules out raw material inconsistency when deviations exhibit strict numerical periodicity. A defect that returns every fourth part almost never stems from filament diameter variations or random ambient temperature dips. Instead, it isolates mechanical transmission factors, such as lead screw runout matching 4-part raster repeats, four-phase stepper motor pole-angle offsets, extruder gear eccentricity over four part intervals, or quadrant-specific toolhead deceleration curves programmed in the slicer.

Process Variation Breakdown

To pinpoint the harmonic source, our metrology team applied optical profiling across sequential print queues. By mapping toolpath g-code layer times against the physical position of each part on the build plate, we traced the +0.14mm flange shift directly to a cyclic thermal-bed resonance that aligned with the stepper motor's full 4-step electrical cycle during rapid quadrant travel moves.

• Quadrant travel synchronization: ensure deceleration jerk values do not align with natural mechanical bed resonance frequencies.
• Lead screw and stepper motor pole testing: inspect Z and Y-axis rotation angles to detect periodic micro-step pitch errors.
• Slicer toolpath sequence randomization: alternate part travel order across consecutive layers to decouple cyclic toolhead dwell times.
