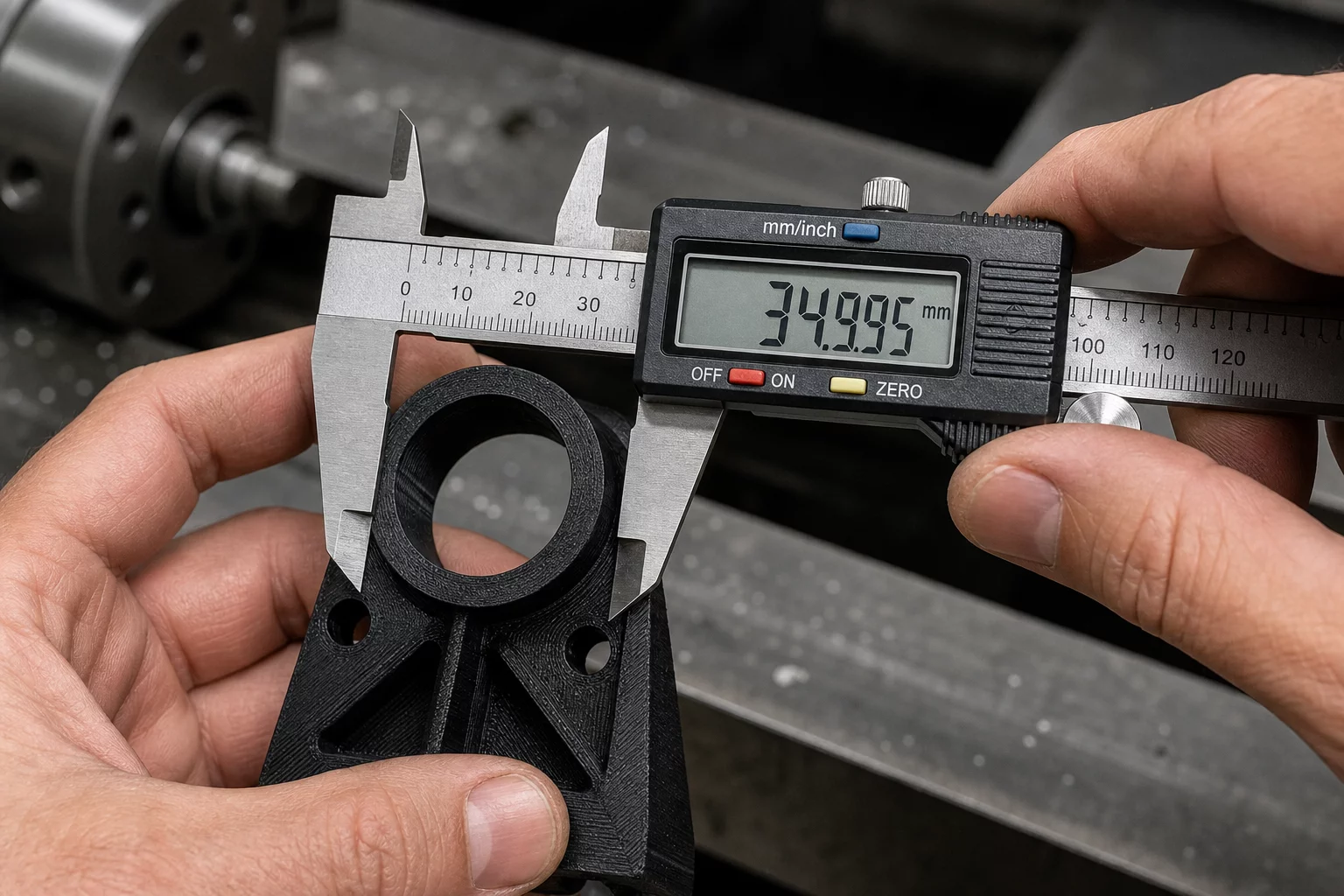

Surface Consistency vs Functional Consistency

Evaluation Scope and Metrological Standards

In serial additive manufacturing and rapid prototyping workflows, surface consistency often serves as an intuitive but misleading proxy for overall part quality. An external wall that appears flawless under shop-floor illumination can conceal substantial variations in core volumetric density, interlaminar bond strength, or bore concentricity. Production managers frequently approve batches based on exterior surface roughness values while internal stress concentrations and thermal contraction gradients remain entirely unmonitored.

Functional consistency demands verifiable mechanical repeatability across critical mating surfaces, bore diameters, load-bearing bosses, and deflection boundaries. When parts experience cyclic mechanical loading or thermal shifts during service, microstructural voids and slight layer-to-layer under-extrusion precipitate early fatigue failures. Isolating surface finish assessment from functional tolerance verification establishes a robust defense against unpredicted field recalls.

Process Variation Breakdown

Thermomechanical stability throughout the build volume dictates how closely surface profile measurements align with structural performance. Slight localized cooling variations across multi-part print beds introduce subtle crystalline phase differences in semi-crystalline polymers, leaving perimeter walls geometrically uniform while core polymer chains exhibit uneven tensile yield points.

• Surface roughness metrics (Ra/Rz) calibrated against optical interferometry independently of dimensional GD&T envelopes.
• Internal bore circularity and pin interference retention verified using dedicated plug gauges and coordinate measuring probes.
• Inter-layer shear resilience evaluated through destructive batch coupon pull tests alongside non-destructive ultrasonic resonance.
