Nine Similar Parts and One Different Result

Evaluation Scope and Metrological Standards

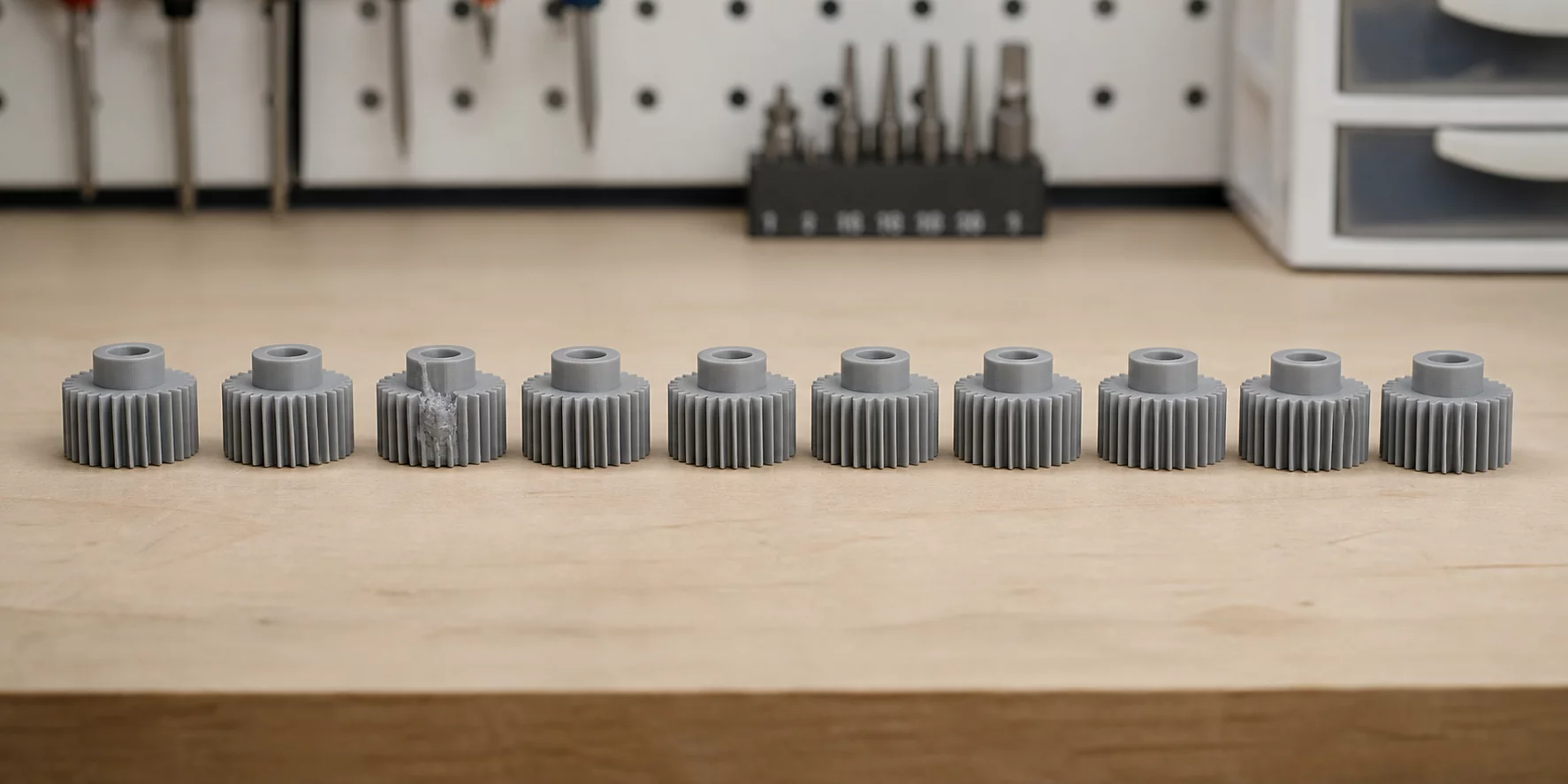

When producing small runs in additive manufacturing, examining ten identical components frequently reveals a puzzling occurrence: nine specimens fall comfortably within the geometric tolerance envelope, while one displays unexpected dimensional departure. Dismissing that single departure as random noise risks overlooking early mechanical wear, localized thermal bed dropouts, or slice path recalculation errors.

Statistical metrology requires separating common cause variation from assignable causes. A genuine random perturbation affects only a singular print location or momentary cycle, whereas an assignable process disturbance repeats along fixed kinematic coordinates or temporal cycles. Establishing strict coordinate tracking during bed extraction preserves the spatial context needed to evaluate why the tenth unit diverged.

Process Variation Breakdown

Analyzing the discrepancy requires examining the geometric build plane, thermal gradients, and layer-by-layer volumetric flow rates across the print envelope:

• Bed Edge Thermal Loss: Edge placements experience faster convective heat transfer, inducing localized base warpage on outlier specimens.
• Filament Diameter Pulse: Brief spool diameter deviations create short-lived under-extrusion sequences in isolated components.
• Gantry Resonance Overlap: Specific toolhead traversal speeds trigger harmonic vibrations only at designated travel endpoints.
